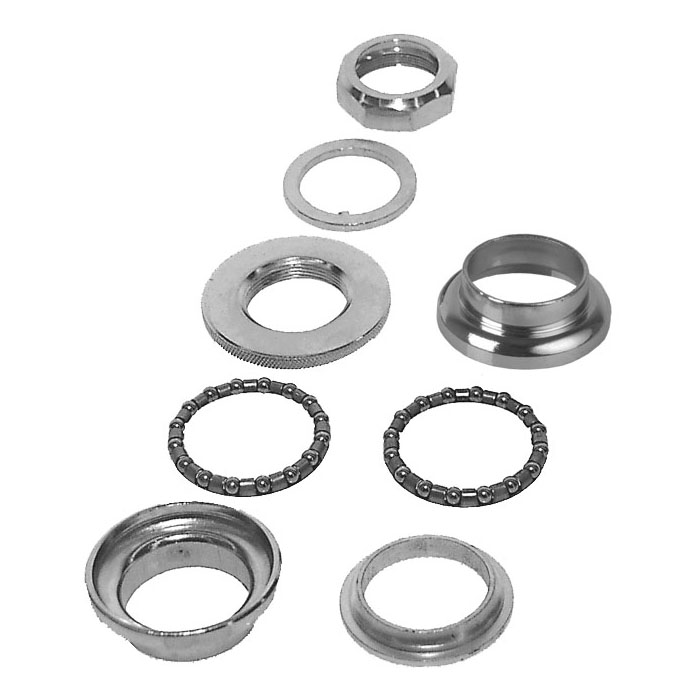

390423 ECO HEAD SET 1″ STEEL 22.4/30.2/26.4MM – AVAILABLE IN SELECTED BIKE SHOPS
| affix | Eco 1b |
| colour | silver |
| Material general | Steel |
| chromium-plated | |
| head set size | 1″ |
| bearing | ball bearing |
| position of ball bearing | external ball bearing cups |
| height | 34,3 mm |
| head set upper part SHIS | EC 30/25,4 |
| head set lower part | EC 30/26 |
| inner diameter | 25,4 mm |
| outer diameter of the (upper) bearing shell (B1) | 30,2 mm |
| outer diameter of the lower bearing shell (B2) | 30,2 mm |
| cone seat on the fork | 26,4 mm |
| upper, inner diameter of the lock nut | 22,4 mm |
